Kab 856 Seat

  • Description

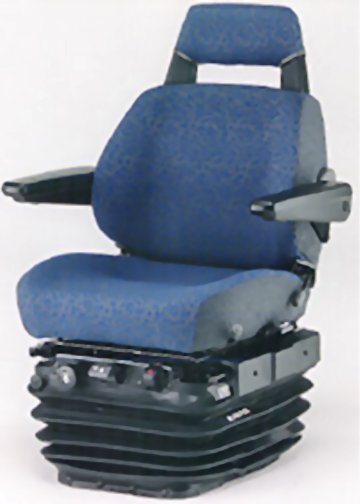

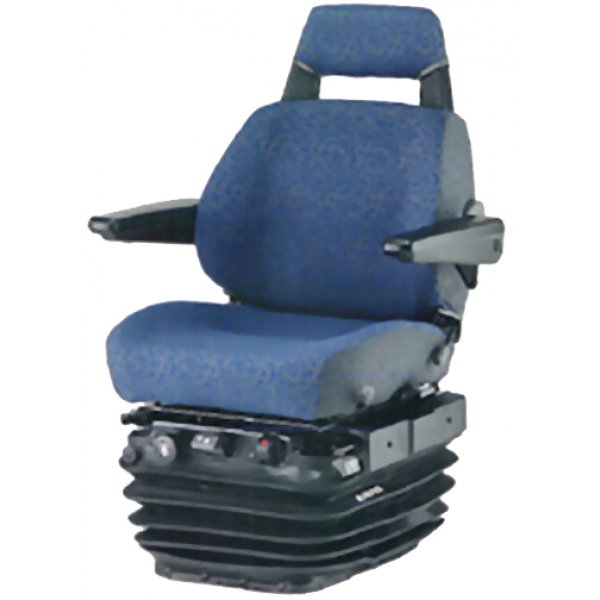

(SHOWN WITH OPTIONAL HEADREST AND ARMRESTS)
  • 175mm vertical suspension stroke with integral 75mm seat height adjustment
  • Integral air compressor
  • Weight adjustment 50 - 130kg
  • Fore and aft adjustment of 150mm - 15mm steps
  • Horizontal suspension
  • 5 position lumbar support
  • Adjustable pivoting armrests
  • Backrest angle adjustment (+ 66 degrees / - 72 degrees)
  • Suspension cover
  • Meets EEC 78/764 with amendments 83/190 & 88/468 Class I, II & III
  • Meets flammability standards FMVSS 302 & ISO 3795 (<250mm/min)
  • Seat belt anchorages to ISO 3776
  • ISO 6683 & SAE J386
  • Variable upstop
  • Adjustable thigh support - 3 positions Options
  • Seat swivel, +/- 10 degrees and +/- 20 degrees
  • Cushion heaters - 12v or 24v
  • Backrest extension
  • Seat belt to ISO 3776, ISO 6683 & SAE J386
  • Adjustable damper
  • Adjustable/non adjustable pivoting armrests
  • Fore and aft adjustment of 160mm in 10mm steps
  • Double damper option
