Grammer MSG87 mechanical suspension seat 180 kgs Occupant rating

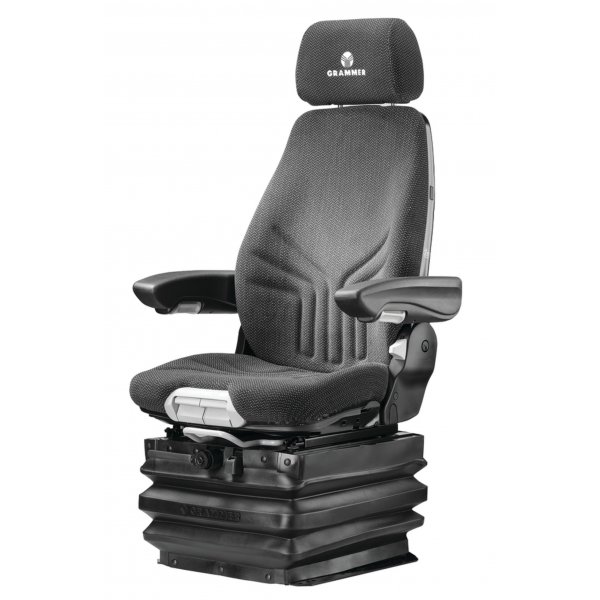

Grammer MSG87 Mechanical Suspension Seat
Heavy-Duty Suspension Built for Big Operators

The Grammer MSG87 is a rugged, mechanical suspension seat built to handle extreme conditions and larger operators without compromising comfort or durability. Rated for occupants up to 180 kg, it features full mechanical weight adjustment and a robust scissor-style suspension system that delivers 180 mm of suspension travel—perfect for absorbing shock in rough environments like construction, mining, and forestry.

Its extra-wide seat base (up to 550 mm) provides a stable and comfortable platform, while optional side-to-side and fore-aft isolators reduce vibration and fatigue. With height adjustment up to 80 mm, tilt, lumbar support, slide rails, and more, the MSG87 allows for precise, ergonomic setup tailored to the operator.

This seat is often preferred over air suspension options where mechanical simplicity and toughness are more important than fine-tuned air comfort. Industry dealers regularly describe the MSG87 as a top-tier mechanical suspension and a workhorse for high-weight users.

Technical Highlights:

Occupant weight capacity: 50–180 kg

Suspension travel (vertical): 180 mm

Seat width: up to 550 mm

Height adjustment: 80 mm (3-stage)

Adjustments/features: mechanical weight tuning, seat tilt, lumbar, height, slide rails, side and fore-aft isolators (optional), headrest, armrests, seatbelt options, operator presence switch

Best suited for:
Operators over 120 kg | Heavy machinery in rough conditions | Equipment without air systems | Long-duty shifts with repeated shock/vibration.
