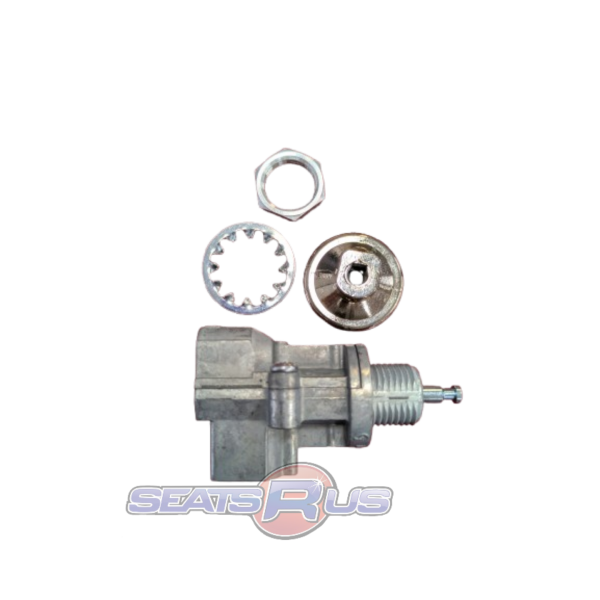

Air Seat Control Valves are designed for use in trucks and heavy machinery equipped with air suspension systems, enhancing driver comfort. They allow for the adjustment of seat height and driver position through the manipulation of air pressure. The valves feature a pneumatic mattress and a shock absorber that alter the seat's position by either supplying or releasing air, and they are integrated with the vehicle's pneumatic system.
Technical Specifications:
Versatile: Universal design suitable for various applications.
Three-Way Functionality: Enables multiple operational modes.
Removable Chrome Knob: For easy access and control.
Actuation: Push/Pull configuration:
Push: Supplies inlet pressure to the outlet port.
Pull: Vents the outlet port.
Leakage Prevention: No leakage from the output port when in the "OFF" position.
Pressure Rating: 200 PSI.
Porting: Exit port options are 1/8"-27 NPTF (female thread).
Installation Torque: Maximum of 15 ft. lbs.
Port Size: Two 1/8" FPT connections.
